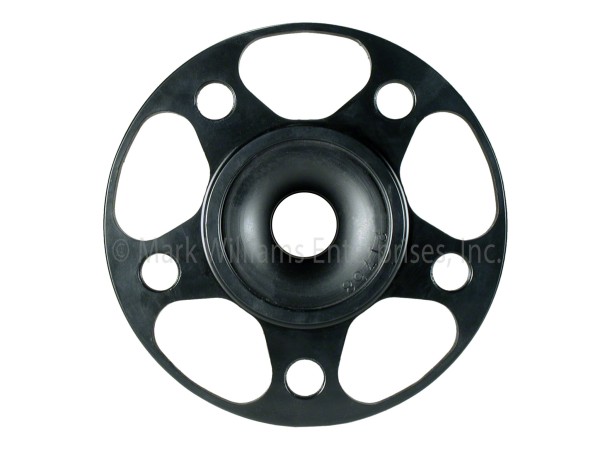

MW Ultimate  Hi-Torque axles are forged 300M alloy and custom made for each application. They have extensively milled pocket lightened flanges for additional weight savings. The use of aircraft quality 300M forgings make it possible to enlarge the diameter of the gun drill bore through the entire length of the shaft to 1" diameter without sacrificing strength.  MW precision bored to remove any possible stress risers. The additional machining done behind the MW name plate and revised axle profile helps achieve the 14.7 pound (45%) weight savings over MW Standard Hi-Torque axles. All MW axles are designed to accept the largest axle bearing diameter possible for your particular housing end, then each axle shaft is tapered from the bearing journal to the spline. The combination of the large bearing diameter and tapered shaft increases torsional and bending capacity. These axles also feature tapped stud holes (1/2" or 5/8") in the pattern of your choice. We can make lengths up to 32” overall.  Get detailed information on what is needed to ensure that your new axles are a perfect fit on our How To Order Axles page. Then, Download service bulletin # 0077 axle order form to help gather your dimensions.   Pricing is per pair. Bearings sold separately. Installation - Service instructions can be found on Service Bulletin #0045. Pricing varies with lengths and options.  Call and discuss the options with our technical experts today. 866-568-6394 .

*17.3 pounds for a pair of 40 spline axles (no bearings and studs) fitting a 31" wide housing.
