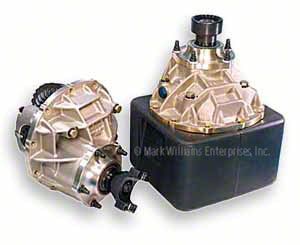

MARK WILLIAMS 3rd MEMBER PACKAGES | |||||
• Complete race-ready thirdmember • Set up by M-W's experienced technicians • Includes all components as listed • Free transporter case • Free Torco gear lube | |||||
Pro Mod Assembly (10")Aluminum thru-bolt case (3.812" bore), 40-spline lightweight steel spool, ball / tapered bearing pinion support with 1350 series pinion yoke (can be upgraded to 1480). 1/2" ring gear bolts, your choice of 3.70 to 6.14 large pinion 10" pitch diameter Pro gears. | Pro Mod Assembly (10")Aluminum thru-bolt case (4.000" bore), 40-spline lightweight steel spool, ball / ball bearing pinion support with 1350 series pinion yoke (can be upgraded to 1480). 1/2" ring gear bolts, your choice of 3.70 to 6.14 large pinion 10" pitch diameter Pro gears. | Pro Mod Assembly (10")Aluminum thru-bolt case (4.000" bore), 40-spline lightweight steel spool, ball / ball bearing pinion support with 1350 series pinion yoke (can be upgraded to 1480). 1/2" ring gear bolts, your choice of 3.25 to 5.14 large pinion 9-1/2" large pinion Pro gears. | |||
p/n 57026 | p/n 57027 | p/n 57028 | |||
Super Gas/E.T.Aluminum thru-bolt case (3.250" bore), lightweight steel spool, MW 1350-series pinion yoke, ball / tapered bearing pinion support, your choice of 4.86 to 6.50 standard pinion 9" Pro gears. | Super Gas/E.T. Bracket AssemblyAluminum thru-bolt case (3.250" bore), lightweight steel spool, MW 1350-seriespinion yoke, ball / tapered bearing pinion support, your choice of 3.89 to 4.86 large pinion 9" Pro gears. | Pro Stock AssemblyAluminum thru-bolt case (3.812" bore), 40-spline aluminum spool, steel MW1350-series pinion yoke, ball / tapered bearing pinion support, your choice of 4.86 to 6.50 standard pinion 9" Pro gears. | |||
p/n 57003 | p/n 57008 | p/n 57019 | |||
Pro Stock AssemblyAluminum thru-bolt case (3.812" bore), 40-spline aluminum spool, steel MW | Pro Stock Assembly (9-1/2")Aluminum thru-bolt case (3.812" bore), 40-spline aluminum spool, steel MW1350-series pinion yoke, ball / tapered bearing pinion support, your choice of 4.86 to 5.43 standard pinion 9-1/2" Pro gears. | Top Sportsman Assembly (9")Aluminum thru-bolt case (3.812' bore), 40-spline lightweight steel spool, steelMW 1350-series pinion yoke, ball / tapered bearing pinion support, your choice of 3.20 to 4.86 large pinion 9" Pro gears. | |||
p/n 57009 | p/n 57014 | p/n 57011 | |||
Top Sportsman Assembly (9-1/2")Aluminum thru-bolt case (3.812" bore), 40-spline lightweight steel spool, MW steel 1350-series pinion yoke, ball / tapered bearing pinion support, 1/2" ring gear bolts, your choice of 4.11 to 4.86 large pinion 9-1/2" Pro gears. | Pro Dragster AssemblyAluminum thru-bolt case (3.250" bore), lightweight steel spool, MW female pinioncoupler, ball / tapered bearing pinion support, your choice of 4.86 to 6.50 ratio standard pinion 9" Pro gears. | Pro Dragster Assembly (Large Pinion)Aluminum thru-bolt case (3.250" bore), lightweight steel spool, MW female pinioncoupler, ball / tapered bearing pinion support, your choice of 3.40 to 4.86 ratio large pinion 9" Pro gears. | |||
p/n 57021 | p/n 57001 | p/n 57002 | |||
Top Dragster AssemblyAluminum thru-bolt case (3.812" bore), 40-spline lightweight steel spool, MW female pinion coupler, ball / tapered bearing pinion support, your choice of 3.40 to 4.86 large pinion 9” Pro gears. | 9-1/2" Alcohol Dragster-F/C AssemblyAluminum thru-bolt case (3.812" bore), 40-spline lightweight steel spool, MW female pinion coupler, ball / tapered bearing pinion support, 1/2" ring gear bolts, your choice of 4.10 to 4.86 large pinion 9-1/2" Pro gears. | Superlite Econo/Comp AssemblyLightweight Aluminum case (3.250" bore), 35-spline aluminum spool, MW female pinion coupler, ball / tapered bearing pinion support, lightened standard pinion 9" 8620 gear. | |||
p/n 57010 | p/n 57013 | p/n 57012 | |||
