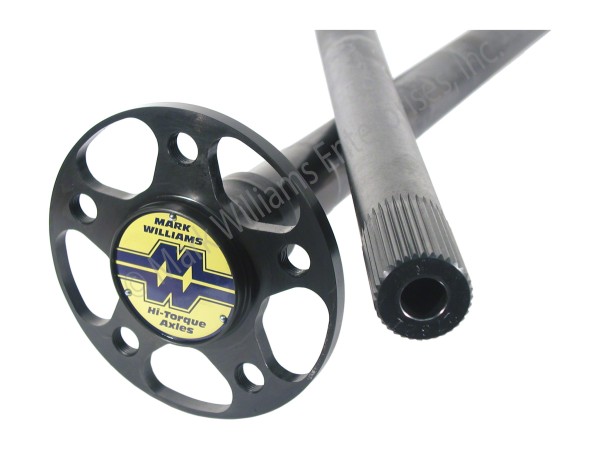

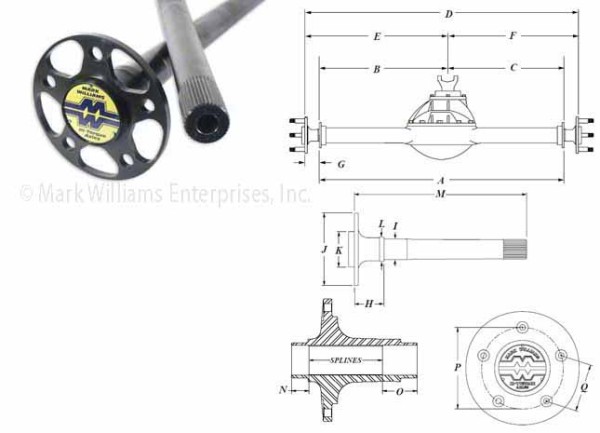

35 spline superlight axles can be used for cars weighing up to 1800 lbs while 40 spline superlight axles are recommended for vehicles over 1800 lbs. MW Superlight Hi-Torque axles are forged 4340 steel and custom made for each application. They have pocket lightened flanges for additional weight savings and an 11/16" gun drill through the entire length of the shaft. MW precision hones the bore to remove any possible stress risers. All MW axles are designed to accept the largest axle bearing diameter possible for your particular housing end, then each axle shaft is tapered from the bearing journal to the spline. The combination of the large bearing diameter and tapered shaft increases torsional and bending capacity. These axles also feature tapped stud holes (1/2" or 5/8") in the pattern of your choice. Get detailed information on what is needed to ensure that your new axles are a perfect fit on our How To Order Axles page. Then, Download service bulletin # 0077 axle order form to help gather your dimensions. Pricing is per pair. Bearings sold separately.

*Superlight Hi-Torque axles offer a weight savings of 6.88 pounds per pair of 35 spline, 24" long standard Hi-Torque axles - 19% weight savings!

Installation - Service instructions can be found on Service Bulletin #0045.
